Static pressure shows up constantly across this site — filter DP monitoring, fan selection, duct sizing, package unit airflow troubleshooting — without ever getting its own explanation. It’s the single concept connecting most of those pages, so this fills that gap directly.
What Static Pressure Actually Is
Static pressure is the resistance to airflow inside a duct system — the pressure air exerts against the duct walls as a fan tries to push or pull it through filters, coils, fittings, and ductwork. It’s distinct from velocity pressure (the “kinetic” component of moving air); static pressure is the potential-energy component, present even in a sealed duct with no flow.
Every restriction in the airstream — a filter, a coil, a damper (including how much it leaks even when fully closed, covered in our damper leakage class guide), a fitting, a length of duct — adds to it. A fan has to generate enough static pressure to overcome the combined resistance of everything downstream, or the design airflow simply won’t be delivered.
External Static Pressure (ESP) vs. Total Static Pressure (TSP)
This is the distinction most worth getting right, because equipment datasheets and field measurements don’t always mean the same thing:
- External Static Pressure (ESP) is the resistance outside the air handling unit or package unit cabinet — the ductwork, fittings, and terminal devices connected to it. It does not include the internal components of the unit itself (the internal coil, internal filter). ESP is measured at the inlet and outlet of the unit, and it’s what fan and equipment datasheets are rated against.
- Total Static Pressure (TSP) is the full resistance across the entire system, including everything inside the unit cabinet as well as the external ductwork.
Fan performance curves are published against ESP specifically — a datasheet showing “X CFM at Y in. w.g.” is describing external static pressure, not total. Confirming which figure you’re working with, and which one a given curve or spec actually represents, is a real and easy-to-miss distinction.
How It’s Measured
Static pressure is measured with a manometer (or digital micromanometer) connected to test ports on the supply and return sides, ideally located at least 1.5 duct diameters away from any bend or fitting to avoid a distorted reading. The return side reads negative pressure, the supply side reads positive pressure, and the two magnitudes are added together to give the total external static pressure — taken with the system running at full design airflow, not idle.
Why Fan and Equipment Selection Depends on ESP
Fan and package unit selection is done against a specific ESP figure, with margin built in for real-world conditions. Undersize the fan’s ESP rating relative to the actual duct system’s resistance, and the unit won’t deliver its rated airflow no matter how correctly everything else is sized — which is exactly the kind of gap that shows up later as reduced cooling capacity with no obvious fault, the same pattern covered in our package unit maintenance guide when a failing belt or a dirty filter quietly raises the system’s actual resistance above what the fan was selected to handle.
What Happens When Static Pressure Is Wrong
Static pressure that’s too high for the system as designed puts real strain on the fan motor and other components, increases noise, and reduces energy efficiency — the fan has to work harder and run longer to deliver the same airflow, which shows up directly on the utility bill and shortens equipment life. Too little static pressure is a less common problem in practice, but it still results in air not being delivered where and how the system was designed to deliver it.
Either direction eventually shows up as the same practical symptom covered elsewhere on this site: reduced cooling, uneven temperatures across spaces, and equipment that fails earlier than it should.
Static Pressure as a Diagnostic Trend, Not Just a Setpoint
A single static pressure reading is useful, but the real diagnostic value is in the trend. Static pressure climbing over successive readings is a direct sign that something in the airstream — most commonly a filter — is progressively restricting flow, well before that restriction causes a downstream failure. This is the exact same underlying logic behind differential pressure monitoring across a filter bank: rising DP (or rising static pressure more broadly) is an early, trendable signal, not something to wait on until a hard alarm threshold trips.
Duct Sizing’s Role in Static Pressure
Undersized ductwork is a common, avoidable contributor to excessive static pressure: the same airflow forced through a smaller cross-section moves at a higher velocity, and higher velocity means more friction loss per foot of duct. Correcting this is often as straightforward as upsizing the duct cross-section for the run in question — which is exactly the kind of check our Duct Size Calculator and Ductulator are built for: getting the duct sized correctly against the actual airflow, rather than discovering the mismatch after the system is already installed and running hotter, noisier, or less efficiently than it should.
Reasoning Through an ESP Check
- Confirm which figure you’re actually working with — ESP or TSP — before comparing a field reading against a datasheet.
- Measure with the system at full design airflow, not idle, and with test ports placed away from bends or fittings.
- Add the return-side and supply-side readings together to get the total external static pressure.
- Compare against the fan or unit’s rated ESP, with the manufacturer’s stated margin, not the bare minimum figure.

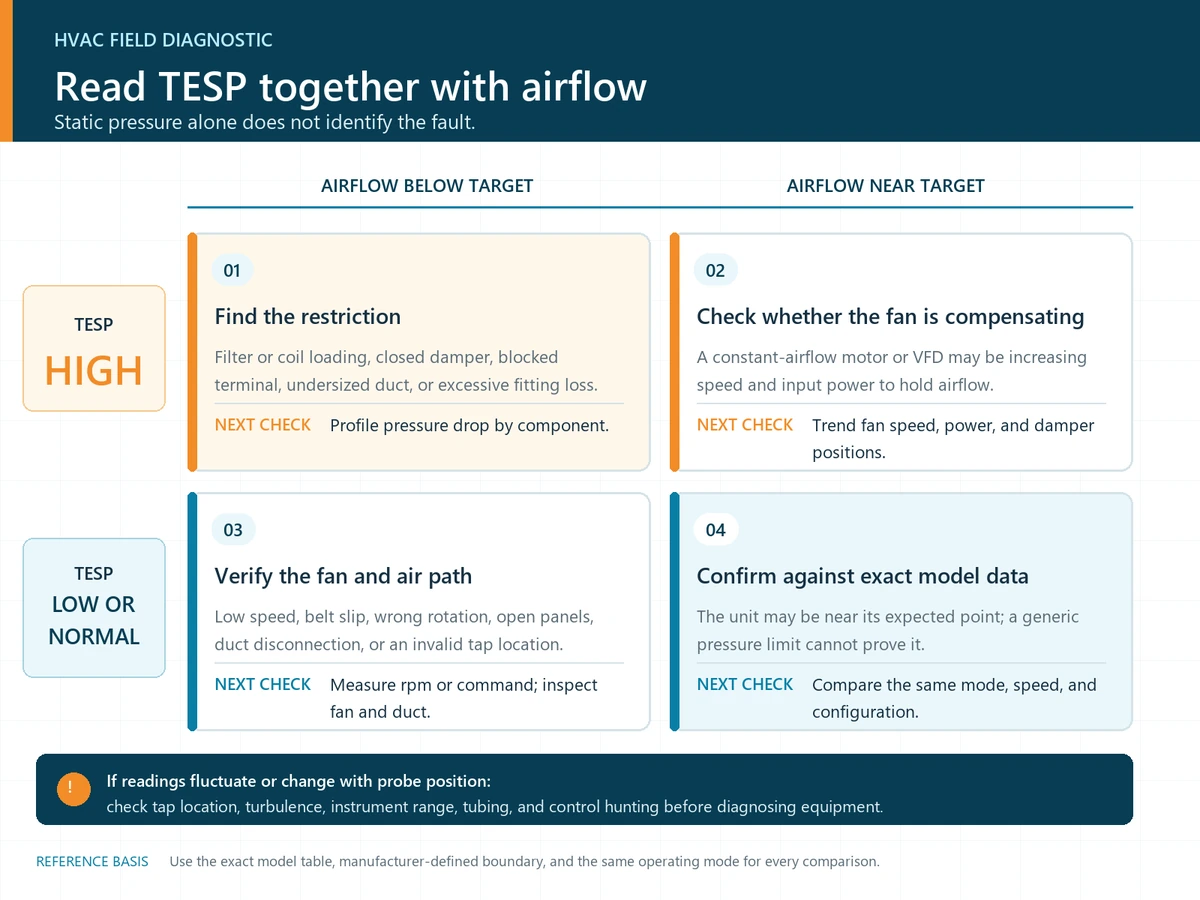

- If static pressure is unexpectedly high, check the airflow path — filter condition, coil cleanliness, duct sizing — before assuming a fan or motor fault.
- Trend it across visits, not just as a single point-in-time reading, since the direction of change is often more informative than any single value.
Common Mistakes
- Confusing ESP and TSP when comparing a field measurement against a fan datasheet, which are usually rated against ESP specifically.
- Measuring near a bend or fitting, producing a distorted reading that doesn’t represent the system’s actual resistance.
- Treating a single static pressure reading as sufficient, rather than trending it across maintenance visits to catch developing restriction early.
- Assuming a static pressure problem is a fan or motor fault before checking the simpler, more common causes — filter condition, coil cleanliness, duct sizing.
- Sizing ductwork without checking the resulting static pressure, leading to a duct system that technically fits the space but forces the fan to work harder than necessary.
Frequently Asked Questions
What’s a typical static pressure range?
Residential systems commonly run around 0.5 in. w.g., though the correct figure for any specific system depends on its design and the equipment’s rated ESP — there isn’t one universal “correct” number, and the manufacturer’s datasheet for the specific equipment installed is the actual reference point.
Is high static pressure always caused by the ductwork?
No — filters, coils, grilles, and dampers all contribute to external static pressure alongside the ductwork itself. A rising reading is a signal to check the whole airflow path, not just duct sizing specifically.
Why does my fan run louder than it used to, even though nothing was replaced?
Rising static pressure is a common cause — as resistance in the system increases (often from a filter or coil gradually restricting flow), the fan works harder to maintain airflow, which increases both energy use and noise. This is the same trend-based signal worth catching before it becomes a bigger problem.
Does this apply the same way to exhaust and supply systems?
The underlying physics is the same, though the pressure relationships differ slightly — an exhaust-only system has resistance primarily on the inlet side. See our exhaust fan selection guide for how this applies specifically to exhaust applications.
