This free duct sheet takeoff Excel workbook totals the external surface area of straight rectangular duct sections and gets you a preliminary sheet-metal quantity. This page also spells out exactly what the workbook doesn't check before you take it to fabrication or procurement.
Decision brief
The workbook is good for a first-pass straight-duct area takeoff — it's not a full SMACNA duct-construction selector. You enter the quantity, width, height, and length of each straight rectangular section, and the file works out the exposed duct area, drops that area into a size-based gauge bucket, and converts the total into a nominal sheet count.
Before you order anything or release it to fabrication, confirm separately: the project pressure class, material, construction standard and edition, sheet stock dimensions, longitudinal seam, transverse joint, reinforcement, fittings, access doors, waste, and cutting plan.
Important limitation: size alone doesn't establish SMACNA construction
The downloaded file never asks for duct pressure class, and it doesn't select reinforcement or joint construction. Its gauge columns are worksheet categories, not proof that a duct complies with any particular edition of ANSI/SMACNA HVAC Duct Construction Standards—Metal and Flexible. Use whatever standard and edition the project actually specifies for the real construction selection.

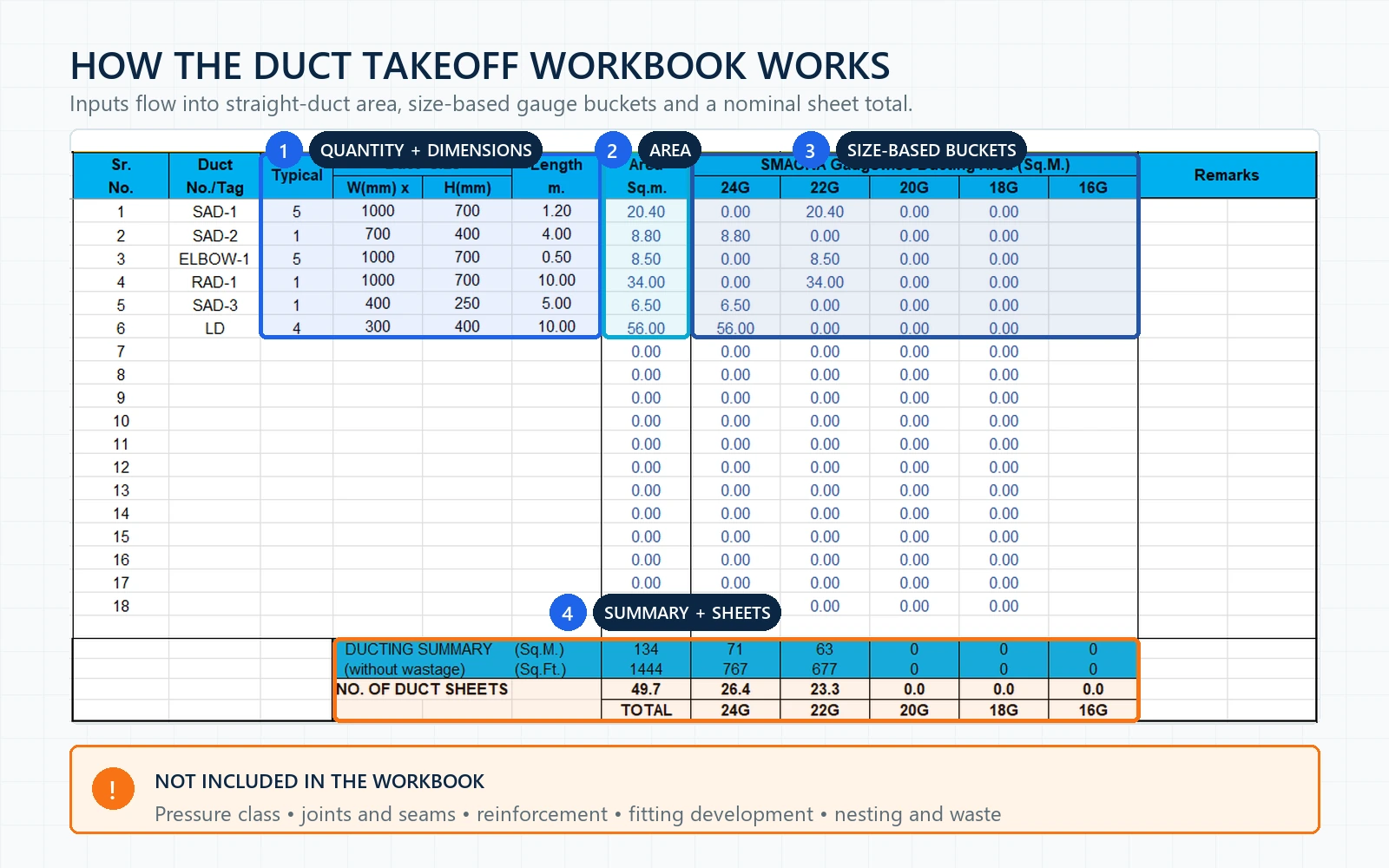

What the Excel workbook actually calculates
Reviewing the live .xls file linked below turned up three active takeoff inputs for geometry, plus a quantity multiplier:
- Typical quantity — the number of identical sections.
- Width and height — entered in millimetres.
- Length — entered in metres.
Formula trace: the area formula is stored in H9:H26. The sheet summary uses H28 for total square metres, H29 for square feet, and H30 for nominal sheets. The following explanation comes from those stored formulas, not from a native Excel recalculation test.
Each calculated row uses the external surface-area relationship for an open-ended straight rectangular duct:
Area (m²) = 2 × (width + height) × length × quantity
Convert width and height from millimetres to metres before plugging them in. This equation only gives you the four side panels — end caps, fittings, joint allowances, and scrap all sit outside it.
The workbook sorts area into calculated columns labelled 24G, 22G, 20G and 18G using fixed dimension bands. Its summary converts total area to square feet using H29 = H28 × 10.763, then calculates H30 = H29 × 1.1 ÷ 32. This means 32 ft² of nominal sheet area with a fixed 10% allowance. It does not establish the physical length and width of the stock, and the result is not rounded up to whole sheets. The approximate 2.7025 m² divisor used in an earlier explanation obscured that allowance; it is not the stated stock-sheet area.
Gauge-summary gap: the 18G formula requires both dimensions to be below 3,001 mm. If either dimension reaches 3,001 mm, all four calculated gauge columns can return zero while the net area remains positive. A 16G heading is visible, but no row calculation was found under it. Reconcile the gauge totals against net area and handle out-of-range sizes separately; these columns do not select compliant construction.
Use this workbook when — and when not to
| Use it for | Do not rely on it for |
|---|---|
| Preliminary surface-area takeoff of straight rectangular duct sections | Final gauge, reinforcement, joint or seam selection |
| Splitting a drawing takeoff into the workbook's existing gauge buckets | Proving compliance with SMACNA, EN 1507 or a local authority specification |
| Cross-checking a manual perimeter-times-length calculation | Estimating elbows, transitions, offsets, branches, plenums or accessories |
| Putting together an early material allowance for budgeting | Issuing a purchase order without confirming stock sheet size, nesting and waste |
A controlled duct sheet takeoff workflow
- Split the system into measurable items. Start a new row whenever width, height, length, service, or construction duty changes. Keep straight sections separate from fittings.
- Enter the geometry in the workbook's units. Width and height go in as millimetres, length as metres. Only use the quantity field for sections that are genuinely identical.
- Check the calculated area yourself. Pick at least one row from every repeated group and recalculate
2(W + H)LQby hand. A unit slip here can multiply the result by 1,000. - Reclassify construction outside the workbook. Look up the applicable table in the project-specified duct construction standard using the real pressure class, material, and panel condition, and record reinforcement and joint requirements separately.
- Add fittings and fabrication allowances. Measure elbows, reducers, offsets, branches, and plenums from approved shop geometry. Add longitudinal seam and transverse-joint consumption based on the construction you've actually selected — not a flat percentage.
- Convert developed pieces into purchasable sheets. Use the supplier's actual sheet dimensions, any grain or coating constraints that apply, and a real nesting plan. Only round the physical stock up once you know the layout basis.
- Reconcile the procurement total. Compare net developed area, fitting allowance, joint/seam allowance, nesting loss, and the final whole-sheet quantity as separate line items, so a reviewer can see exactly where the contingency came in.
Worked example: one repeated straight duct section
Assumed takeoff item: five identical straight sections, each 1,000 mm wide × 700 mm high × 1.2 m long. These dimensions are just an example, not a construction approval.
1. Convert dimensions: W = 1.000 m; H = 0.700 m.
2. Perimeter: 2 × (1.000 + 0.700) = 3.400 m.
3. Area: 3.400 × 1.2 × 5 = 20.4 m².
4. Workbook nominal sheets: 20.4 × 10.763 × 1.1 ÷ 32 = 7.54755375, displayed as 7.55 sheets. The factor 1.1 already adds 10%.
Takeoff result: the net straight-side area is 20.4 m². The workbook's assumptions give 7.55 nominal sheets, or eight when rounded up, with its fixed 10% allowance already included. That is not a verified purchasing quantity. Use the actual sheet dimensions and developed pieces, separate fitting/seam/joint quantities from nesting loss, and reconcile the existing allowance before adding another percentage. Verify pressure class and reinforcement independently of the gauge buckets.
Why the purchase quantity usually ends up higher than surface area ÷ sheet area
A square-metre total assumes every offcut gets reused perfectly, and fabrication rarely works that way. Developed panel widths have to fit the available stock, seams and joints eat into the metal, transverse stiffeners can shift where breaks land, and a transition or elbow can leave an offcut nobody can use on the next piece. Keep net area and procurement allowance as separate numbers — otherwise nobody can tell whether a high total came from the geometry, the construction, or just conservative waste padding.
For fitting geometry, see the BuildMEP duct fitting geometry guide. For the design pressure context that drives duct construction, see static pressure in HVAC.
Failure modes to catch before procurement
| Mistake | Consequence | Observable symptom | Correction |
|---|---|---|---|
| Treating the gauge bucket as a SMACNA selection | Under-specified panels, joints or reinforcement | No pressure class or reinforcement schedule shows up anywhere in the takeoff | Select construction from the adopted project standard and record the table reference |
| Ordering the workbook's fractional sheet count as-is | Material shortage | Total ends in a decimal, but sheets are purchased whole | Confirm stock dimensions, nest the parts, then round up the purchasing quantity |
| Assuming 32 ft² and the built-in 10% allowance match the project | Incorrect conversion from area to sheets | Supplier sheet length and width never appear in the calculation record | Use actual stock dimensions and a documented allowance; avoid adding the same waste twice |
| Entering fittings as short straight lengths | Developed metal area comes out understated | Elbows and transitions have no separate schedule | Develop or estimate each fitting from its approved geometry |
| Tacking on one unexplained waste percentage | Estimate can't be audited or improved later | Net area and purchasing allowance are lumped together | Break out seams, joints, fittings, nesting loss, and contingency separately |
Verification checklist
- Confirm the drawing/model revision and whether dimensions are internal or external.
- Confirm the pressure class, positive/negative duty, material and specified construction-standard edition.
- Compare one row per duct size against a manual perimeter-times-length calculation.
- Record fittings, access doors, dampers, flexible connections and plenums outside the straight-duct table.
- Verify the longitudinal seam, transverse joint and reinforcement arrangement before adding fabrication allowances.
- Measure the supplier's actual sheet length and width; verify the 32 ft² assumption and reconcile the built-in 10% allowance.
- Reconcile net area against the sum of gauge columns; dimensions of 3,001 mm or more are outside the calculated bands.
- Approve the nesting/waste basis and round the final purchase quantity to whole sheets.
Download the free duct quantity takeoff workbook
This is a legacy Excel .xls workbook. Treat it as a preliminary estimating aid, and keep the limitations above attached to any quantity summary you issue.
File and provenance note: the file contains existing preparer/checker labels, an empty worksheet and an unrelated hidden equipment-pricing worksheet. Those labels do not establish original authorship or permission to redistribute. The original source and reuse rights remain unverified; BuildMEP does not claim this legacy file was written by BuildMEP. The file has not been modified as part of this review.
Download the duct takeoff Excel workbookEvidence and scope
- Workbook inspection, 18 October 2026: the live HVAC-System-Duct-Quantity-Take-Off.xls download contains the area and gauge formulas described above. Its five populated geometry rows agree with independent perimeter-times-length arithmetic. The cached 78.2 m² total gives 28.932289375 nominal sheets using
78.2 × 10.763 × 1.1 ÷ 32. Formula reading and cached-value checks do not establish native Excel recalculation, full validation or ownership. - Construction reference: Sheet Metal and Air Conditioning Contractors' National Association, ANSI/SMACNA HVAC Duct Construction Standards—Metal and Flexible, 4th edition (2020). SMACNA lists this as its current flagship metal and flexible HVAC duct construction standard.
- Inspection context: SMACNA, HVAC Duct Systems Inspection Guide, 4th edition (2023), covering materials, reinforcement, assembly and supports against the fourth-edition construction standard.
The project specification, adopted code, authority requirements, and approved shop drawings are what actually govern. Standards are copyrighted; this page doesn't reproduce their construction tables.
Frequently asked questions
Does the workbook calculate elbows and transitions?
No. Its row equation only works for straight rectangular sides. Develop fittings separately from their approved geometry and add them into the takeoff by hand.
Does the workbook select SMACNA gauge from pressure class?
No. The audited file has no pressure-class input at all. Its gauge columns come from fixed dimension bands, so final duct construction still needs to be checked independently.
Should the sheet count be rounded up?
Yes, purchasing needs whole sheets. First verify the workbook's 32 ft² assumption against the actual stock, account for developed fittings and construction allowances, and reconcile the 10% already included in its sheet formula. Then use the approved cutting/nesting plan and round the purchasing quantity up.
Can I use one waste percentage for every project?
Not reliably. This workbook applies a fixed 10% in its sheet-count formula. Waste depends on stock size, developed dimensions, fitting mix, joints, nesting and offcut reuse. Document the actual basis and avoid adding another blanket 10% to a result that already contains it.
