Free Heat Load Calculator is an efficient HVAC system that starts with one of the most critical engineering tasks—accurately calculating the building’s cooling load. Selecting an air conditioning system without a proper heat load calculation can result in oversized equipment, increased energy consumption, poor humidity control, and unnecessary operating costs. On the other hand, an undersized system may struggle to maintain the desired indoor comfort, especially during peak summer conditions.

The BuildMEP Free HVAC Heat Load Calculator is a comprehensive Microsoft Excel spreadsheet developed to simplify preliminary cooling load calculations for residential, commercial, and light industrial buildings. Inspired by the widely recognized Carrier E20 methodology, this calculator helps HVAC engineers, MEP consultants, contractors, engineering students, and facility professionals estimate sensible heat, latent heat, ventilation load, infiltration load, lighting load, equipment heat gain, and the total cooling capacity required for a space.

Unlike many basic online calculators that estimate cooling capacity using only floor area, the BuildMEP calculator considers multiple engineering parameters such as outdoor and indoor design conditions, wall and roof heat transfer, solar heat gain through glazing, occupancy, lighting, electrical equipment, fresh air requirements, and air infiltration. This provides a more realistic estimation of the total cooling load before moving to detailed HVAC design software.

Whether you’re designing a villa, office, classroom, retail shop, or small commercial facility, this free Excel calculator can significantly reduce calculation time while helping you understand the factors that influence cooling load estimation. It also serves as an excellent educational resource for mechanical engineering and HVAC students who want to learn the principles of cooling load calculations using a practical spreadsheet.

In this guide, you’ll learn how the calculator works, what each section of the workbook does, how to enter your project data correctly, and how to interpret the final cooling load results for equipment selection.

Why Is Heat Load Calculation Important?

A heat load calculation is one of the first steps in HVAC system design. Before selecting an air conditioner or preparing duct sizing, it is important to know how much cooling the space actually requires.

Many people still estimate the cooling capacity based only on the room area. Although this method may work as a rough guess, it does not consider important factors such as wall construction, window area, building orientation, occupancy, lighting, or fresh air requirements. As a result, the selected air conditioning unit may not perform as expected.

Oversized Air Conditioning System

Selecting a larger unit than required may seem like a safe option, but it can create several problems.

• Higher initial equipment cost
• Increased electricity consumption
• Frequent compressor start and stop cycles
• Poor humidity control
• Reduced equipment life

An oversized system cools the room quickly and shuts down before removing enough moisture from the air. The room may reach the required temperature, but the indoor environment can still feel uncomfortable because of high humidity.

Undersized Air Conditioning System

An undersized system has the opposite problem. It continuously tries to meet the cooling demand but cannot maintain the required indoor temperature during hot weather.

This can lead to:

• Continuous operation of the compressor
• Higher energy bills
• Reduced occupant comfort
• Faster wear on HVAC equipment
• Difficulty maintaining the design temperature

Factors That Affect the Cooling Load

Every building is different. Even two rooms with the same floor area can have completely different cooling loads.

Some of the main factors include:

• Outdoor design temperature
• Indoor design conditions
• Building orientation
• Window size and glass type
• Roof exposure to sunlight
• Wall construction materials
• Number of occupants
• Lighting load
• Electrical equipment
• Fresh air requirement
• Air infiltration through doors and windows

For example, a west-facing office with large glass windows in Doha will normally require much more cooling than a similar-sized room with shaded north-facing windows. Likewise, a conference room occupied by 20 people will have a higher cooling demand than a private office of the same size.

How the BuildMEP Calculator Helps

The BuildMEP Heat Load Calculator is designed to simplify this process. Instead of relying on assumptions, it allows you to enter the project details step by step and estimates the cooling load based on the information provided.

The workbook includes calculations for:

• Solar heat gain through windows
• Heat transfer through walls and roof
• Occupancy load
• Lighting load
• Equipment load
• Ventilation load
• Infiltration load
• Sensible heat
• Latent heat
• Total cooling load

This makes it suitable for preliminary HVAC design of residential buildings, offices, classrooms, retail shops, and many other common applications.

Keep in mind that this Excel workbook is intended for preliminary design and learning purposes. For large commercial buildings, hospitals, airports, or other complex projects, the results should always be verified using detailed HVAC design software and the relevant design standards.

About the BuildMEP Heat Load Calculator

The BuildMEP Heat Load Calculator is a free Microsoft Excel workbook developed to simplify preliminary HVAC cooling load calculations. It follows a structured approach similar to the traditional Carrier E20 method, making it easy to estimate the cooling capacity required for different types of buildings.

The workbook is suitable for preliminary calculations of residential buildings, villas, apartments, offices, classrooms, retail shops, and other small to medium-sized projects. It is also a useful learning tool for engineering students who want to understand how different heat gains contribute to the total cooling load.

Unlike many online calculators that ask for only the room area, this workbook allows you to enter detailed project information. Each section is arranged logically so you can complete the calculation step by step.

What Can This Calculator Do?

The calculator estimates the cooling load by considering several important heat gain sources, including:

• Room dimensions and floor area
• Indoor and outdoor design conditions
• Solar heat gain through windows
• Heat transfer through walls, roof, floor, and partitions
• Lighting heat gain
• Occupancy heat gain
• Electrical equipment load
• Fresh air and ventilation load
• Air infiltration
• Sensible heat load
• Latent heat load
• Total room cooling load

After completing the required inputs, the workbook provides the final cooling load, which can be used as a reference for selecting the appropriate air conditioning capacity during the preliminary design stage.

Simple Layout for Easy Calculations

One of the advantages of this workbook is its simple layout. Instead of entering all the information on a single page, the calculations are organized into different sections. This makes it easier to review the data, identify missing information, and understand how each value affects the final result.

If you are learning HVAC design, you can also trace the formulas and calculations to understand the relationship between different heat gain components. This makes the workbook more than just a calculator—it also works as a practical learning resource.

Developed for Practical Engineering Work

This calculator was created based on common HVAC engineering practices and real project experience. The objective is not to replace professional HVAC software, but to provide a quick and reliable method for estimating cooling loads during the early stages of a project.

For complex buildings such as hospitals, airports, laboratories, data centers, and large commercial developments, the final design should always be verified using specialized HVAC software and the applicable design standards.

At BuildMEP, we believe that good engineering tools should be practical, easy to understand, and accessible to everyone. That’s why this Excel workbook is provided free of charge to help engineers, students, and HVAC professionals save time while improving their understanding of cooling load calculations.

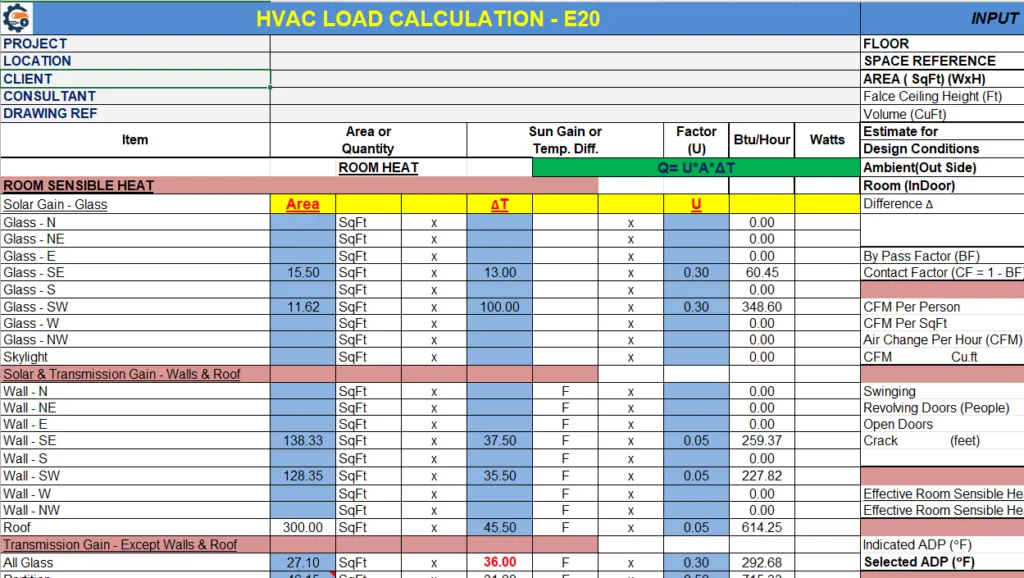

Workbook Overview

The BuildMEP Heat Load Calculator is divided into several sections to make the calculation process simple and organised. Instead of entering all the information on one page, the workbook guides you through each step of the cooling load calculation.

Let’s look at each section in detail.

1. Project Information

The calculation starts with the basic project details. This section helps identify the project and defines the space being analysed.

Typical information includes the following:

• Project name
• Building location
• Floor or level
• Room name or reference
• Room dimensions
• Floor area
• Ceiling height
• Room volume

Although these details do not directly affect every calculation, they provide the foundation for the entire worksheet and help keep multiple room calculations organised.

---

2. Summer Design Conditions

The next section defines the outdoor and indoor design conditions.

These values are very important because the cooling load depends on the temperature difference between outside and inside the building.

The workbook allows you to enter:

• Outdoor Dry Bulb Temperature
• Outdoor Wet Bulb Temperature
• Indoor Dry Bulb Temperature
• Indoor Wet Bulb Temperature
• Relative Humidity

These conditions should be selected based on the project location and the applicable HVAC design standards.

---

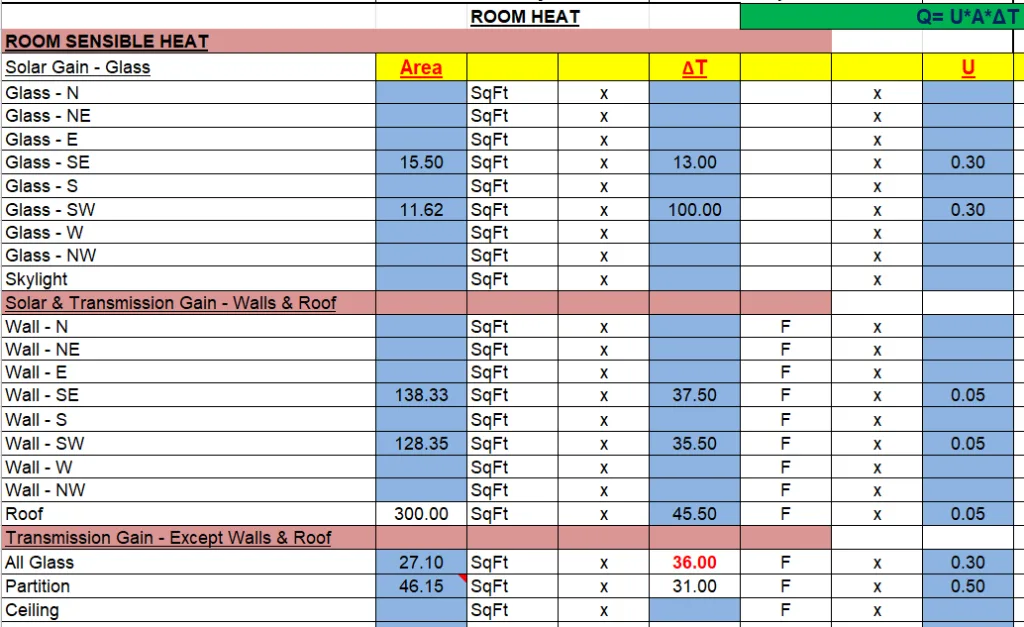

3. Solar Heat Gain Through Glass

Windows are one of the largest sources of heat gain, especially in hot climates.

The calculator allows you to enter the glass area for different building orientations such as:

• North
• North-East
• East
• South-East
• South
• South-West
• West
• North-West
• Skylight

Because the intensity of sunlight changes throughout the day, the orientation of the glass has a significant effect on the cooling load.

Buildings with large west-facing windows usually experience higher solar heat gain during the afternoon than buildings with shaded or north-facing windows.

---

4. Heat Gain Through Walls and Roof

Heat also enters the building through the external walls and roof.

The workbook includes separate calculations for:

• North wall
• South wall
• East wall
• West wall
• Roof

Different construction materials have different thermal properties. Concrete walls, insulated walls, lightweight partitions, and metal roofs will all transfer heat differently. By entering the correct wall and roof information, the estimated cooling load becomes more realistic.

---

5. Internal Heat Gains

Not all heat comes from outside the building. Occupants and electrical equipment also contribute to the cooling load.

The calculator includes separate sections for:

• Occupancy heat gain
• Lighting load
• Electrical equipment
• Office equipment
• Other internal heat sources

For example, a meeting room occupied by twenty people will require much more cooling than a small office occupied by two people, even if both rooms have the same floor area.

---

6. Ventilation and Infiltration

Fresh air is essential for maintaining indoor air quality, but it also increases the cooling load because warm outdoor air must be cooled before it enters the conditioned space.

The workbook considers:

• Fresh air requirements
• Ventilation air
• Air changes
• Infiltration through doors and windows

These calculations are particularly important for offices, classrooms, restaurants, and other buildings with high occupancy.

---

7. Cooling Load Summary

After completing all the required inputs, the workbook automatically calculates the final cooling load.

The summary includes:

• Room Sensible Heat (RSH)
• Room Latent Heat (RLH)
• Room Total Heat (RTH)
• Outside Air Load
• Grand Total Cooling Load
• Cooling capacity in TR
• Cooling capacity in kW

These values provide a good starting point for selecting the appropriate air conditioning equipment during the preliminary design stage.

Always remember that the calculated result should be reviewed together with the project specifications, applicable design standards, and equipment manufacturer recommendations before final equipment selection.

How to Use the BuildMEP Heat Load Calculator

The BuildMEP Heat Load Calculator is designed to be completed step by step. You don’t need to fill every section at once. Start with the basic project information, then continue entering the building details until the workbook calculates the final cooling load.

Step 1 – Enter the Project Information

Start by entering the basic details of your project.

This includes:

• Project name
• Room name or reference
• Building location
• Floor level
• Room dimensions
• Ceiling height

The worksheet automatically calculates the floor area and room volume based on the dimensions you enter. These values are used in later calculations.

BuildMEP Tip: Use a separate worksheet for each room. After calculating all rooms, you can combine the results to estimate the total cooling capacity for the building.

HVAC cooling load calculations are generally based on accepted engineering principles and climate design data published by ASHRAE.

---

Step 2 – Enter the Design Conditions

The next step is to define the indoor and outdoor design conditions.

Typical inputs include:

• Outdoor Dry Bulb Temperature
• Outdoor Wet Bulb Temperature
• Indoor Dry Bulb Temperature
• Indoor Wet Bulb Temperature

These values depend on the project location and the design criteria.

For example, a project in Doha will require different outdoor design temperatures than a project in London or Colombo.

Always use the design conditions specified by the project consultant or the applicable HVAC design standard.

---

Step 3 – Enter Building Envelope Details

Now enter the areas that allow heat to enter the building.

These include:

• External walls
• Roof
• Glass areas
• Partitions
• Floor

For windows, enter the glass area according to its orientation. The workbook calculates the solar heat gain separately because each side of the building receives a different amount of sunlight during the day.

Take your time when entering these values. Small mistakes in wall or window areas can noticeably affect the final cooling load.

---

Step 4 – Enter Internal Heat Gains

The next section covers the heat generated inside the room.

Depending on the space, enter:

• Number of occupants
• Lighting load
• Office equipment
• Electrical appliances
• Other heat-generating equipment

For example, a computer lab will have a much higher equipment load than a storage room, even if both rooms have the same floor area.

---

Step 5 – Enter Ventilation and Fresh Air

Fresh air is required to maintain good indoor air quality, but it also increases the cooling load.

Enter the required ventilation data, including:

• Fresh air quantity
• Outside air
• Air changes
• Infiltration, if applicable

The workbook automatically includes these values in the sensible and latent heat calculations.

---

Step 6 – Review the Cooling Load Summary

After completing all the required inputs, the workbook generates the cooling load summary.

Review the calculated values carefully, including:

• Room Sensible Heat
• Room Latent Heat
• Room Total Heat
• Outside Air Load
• Grand Total Cooling Load
• Cooling Capacity (TR)
• Cooling Capacity (kW)

Before selecting the air conditioning equipment, review the input data once again. In most cases, incorrect room dimensions or window areas are the main reasons for unexpected calculation results.

BuildMEP Tip: A calculator is only as accurate as the information entered. Always verify site measurements and project drawings before finalising the cooling load.

Understanding the Main Inputs

When using the BuildMEP Heat Load Calculator, you will notice several input fields. Each one represents a factor that affects the cooling load of a room. Understanding these inputs will help you use the calculator correctly and obtain more reliable results.

Outdoor Dry Bulb Temperature

The outdoor dry bulb temperature is the normal air temperature outside the building. It is one of the most important design parameters because it determines how much heat enters the building from the surrounding environment.

For projects in hot climates, such as the Middle East, the outdoor dry bulb temperature is much higher than in cooler regions. This naturally increases the cooling load.

Always use the design temperature specified by the project consultant or the applicable design standard instead of the weather forecast for a particular day.

---

Outdoor Wet Bulb Temperature

The wet bulb temperature represents the amount of moisture in the outdoor air.

This value is mainly used when calculating ventilation and latent heat loads. Buildings that require a large amount of fresh air are more affected by the outdoor wet bulb temperature because humid air requires additional cooling and dehumidification.

---

Indoor Design Temperature

This is the temperature you want to maintain inside the room after the air conditioning system is operating.

Typical indoor temperatures vary depending on the type of building and its intended use. For example, an office and a server room will have different design conditions.

Lower indoor temperatures increase the cooling load because the air conditioning system must remove more heat to maintain the desired condition.

---

Room Dimensions

The room length, width, and height determine the size and volume of the conditioned space.

These values are used throughout the workbook to calculate wall areas, room volume, roof area, and several other heat gain components.

Before starting the calculation, always verify the dimensions from the latest architectural drawings or site measurements.

---

Window Area and Orientation

Glass allows a significant amount of solar heat to enter a building.

The amount of heat depends on:

• Window size
• Glass type
• Building orientation
• Time of day
• Solar exposure

For example, west-facing windows usually receive strong afternoon sunlight, while north-facing windows generally experience lower direct solar heat gain.

Entering the correct window area and orientation will improve the accuracy of the cooling load calculation.

---

Wall and Roof Construction

Heat is continuously transferred through walls and roofs.

The amount of heat entering the building depends on:

• Construction material
• Insulation
• Surface area
• Outdoor temperature
• Solar exposure

A well-insulated roof can significantly reduce the cooling load compared to an uninsulated concrete roof.

---

Number of Occupants

People generate both sensible heat and latent heat.

The sensible heat increases the air temperature, while the latent heat increases the moisture content of the indoor air.

As the number of occupants increases, the required cooling capacity also increases.

This is why meeting rooms, classrooms, and auditoriums often require larger HVAC systems than offices with the same floor area.

---

Lighting Load

Almost all electrical energy used by lighting eventually becomes heat inside the room.

The total lighting load depends on:

• Number of light fittings
• Lamp wattage
• Operating hours
• Lighting technology

Although modern LED lighting produces less heat than older lighting systems, it should still be included in the cooling load calculation.

---

Equipment Load

Electrical equipment such as computers, printers, servers, televisions, refrigerators, and office machines also release heat while operating.

In spaces with a large number of electronic devices, the equipment load can become a major part of the total cooling load.

---

Ventilation and Fresh Air

Fresh air is required to maintain indoor air quality and comply with building regulations.

However, every litre of outdoor air entering the building must be cooled and, in many climates, dehumidified before it reaches the occupied space.

For this reason, ventilation often contributes significantly to the total cooling load, especially in offices, schools, restaurants, and healthcare facilities.

---

Air Infiltration

Infiltration is the uncontrolled movement of outdoor air into a building through gaps around doors, windows, and other openings.

Even well-constructed buildings experience some level of air leakage.

The workbook includes infiltration because this additional outdoor air increases both the sensible and latent cooling loads.

Ignoring infiltration may result in selecting an air conditioning unit that is too small for the actual operating conditions.

Understanding the Calculation Results

Once all the project information has been entered, the BuildMEP Heat Load Calculator automatically calculates the required cooling capacity. Before selecting an air conditioning unit, it is important to understand what these results mean.

Room Sensible Heat (RSH)

Room Sensible Heat is the amount of heat that increases the air temperature inside the room without adding moisture.

This heat comes from sources such as:

• Solar heat through windows
• Heat transfer through walls and roof
• Lighting
• Electrical equipment
• Occupants (sensible portion)

The sensible heat value is used when determining the airflow required to maintain the desired room temperature.

---

Room Latent Heat (RLH)

Room Latent Heat represents the moisture that must be removed from the air to maintain comfortable indoor humidity.

Common sources of latent heat include:

• Occupants
• Fresh air
• Air infiltration
• Moisture-producing activities

In humid climates, latent heat can account for a significant portion of the total cooling load. Even if the room reaches the required temperature, high humidity can still make the space feel uncomfortable.

---

Room Total Heat (RTH)

Room Total Heat is simply the combination of the sensible and latent heat within the conditioned space.

Room Total Heat = Room Sensible Heat + Room Latent Heat

This value represents the cooling load generated inside the room before considering outside air requirements.

---

Outside Air Load

Fresh air is essential for occupant health and indoor air quality. However, bringing warm outdoor air into the building also increases the cooling demand.

The calculator includes the heat associated with ventilation air so that the final cooling load reflects more realistic operating conditions.

Buildings with high ventilation requirements, such as offices, classrooms, restaurants, and healthcare facilities, usually have a higher outside air load than residential buildings.

---

Grand Total Cooling Load

The Grand Total Cooling Load is the final result produced by the workbook.

It combines:

• Room sensible heat
• Room latent heat
• Outside air load

This value represents the estimated cooling capacity required for the space under the selected design conditions.

In most cases, this is the value used as a reference when selecting an air conditioning system during the preliminary design stage.

---

Cooling Capacity in TR

The calculator also displays the cooling load in Tons of Refrigeration (TR).

Although many manufacturers now specify cooling capacity in kilowatts (kW), the TR unit is still widely used in HVAC projects around the world.

This makes it easier to compare the calculated cooling load with the available capacities of split units, packaged units, or chilled water systems.

---

Cooling Capacity in kW

The workbook also provides the cooling load in kilowatts.

Many modern HVAC equipment catalogues list unit capacities in kW, so displaying both TR and kW helps engineers compare different manufacturers without performing additional conversions.

---

Before Selecting the Equipment

The calculated cooling load should be considered as the starting point for equipment selection, not the final decision.

Before selecting an air conditioning unit, always review:

• Project specifications
• Applicable design standards
• Ventilation requirements
• Equipment performance data
• Future changes in room usage

A cooling load calculation provides the engineering basis for selection, but the final choice should always consider the complete design requirements of the project.

Common Mistakes in Heat Load Calculation

Even with a good calculation tool, the final result depends on the accuracy of the information entered. A small mistake in the input data can lead to selecting the wrong air conditioning capacity.

Below are some common mistakes to avoid when using the BuildMEP Heat Load Calculator.

1. Using Incorrect Room Dimensions

Always verify the room length, width, and ceiling height from the latest architectural drawings or site measurements.

An error of just a few square metres can affect the calculated cooling load.

---

2. Ignoring Window Orientation

Two windows with the same size may not receive the same amount of solar heat.

A west-facing window usually gains more heat during the afternoon than a north-facing window. Always enter the window area under the correct orientation in the workbook.

---

3. Forgetting Fresh Air Requirements

Fresh air is essential for indoor air quality, but it also increases the cooling load.

Many quick calculations ignore ventilation, resulting in a cooling system that performs well on paper but struggles under actual operating conditions.

---

4. Underestimating Occupancy

People generate both heat and moisture.

For spaces such as meeting rooms, classrooms, restaurants, or prayer halls, always use the expected maximum occupancy rather than the average daily occupancy.

---

5. Ignoring Equipment Heat Gain

Computers, printers, televisions, kitchen appliances, and other electrical equipment all release heat while operating.

In some buildings, the equipment load may be much higher than the lighting load.

---

6. Assuming Every Room Is the Same

It is common to estimate the cooling load for one room and use the same value for similar rooms.

Although this may save time, it can lead to inaccurate equipment selection because each room may have different window areas, wall exposure, occupancy, or ventilation requirements.

Whenever possible, calculate each room separately.

---

7. Adding an Excessive Safety Factor

Some engineers increase the calculated cooling load by a large percentage “just to be safe.”

While a small design margin may be acceptable depending on project requirements, adding an excessive safety factor often results in oversized equipment, higher installation costs, poor humidity control, and unnecessary energy consumption.

It is generally better to improve the accuracy of the input data than to rely on a large safety margin.

---

8. Not Reviewing the Results

Before selecting the air conditioning equipment, review all input values one final time.

Check:

• Room dimensions
• Window areas
• Number of occupants
• Lighting load
• Equipment load
• Design temperatures
• Ventilation values

A few minutes spent reviewing the worksheet can help avoid costly changes later in the project.

BuildMEP Note: This Excel workbook is intended for preliminary cooling load estimation and educational purposes. The final HVAC design should always comply with the project specifications, local regulations, and the applicable engineering standards.

Frequently Asked Questions (FAQ)

For detailed commercial HVAC design, many engineers use Carrier HAP (Hourly Analysis Program) to perform hourly cooling load analysis.

Download the Free BuildMEP Heat Load Calculator

A proper heat load calculation is the foundation of every successful HVAC design. Taking a little extra time to calculate the cooling load correctly can help you select the right equipment, improve energy efficiency, and avoid expensive design changes later in the project.

We hope this Excel workbook saves you time and also helps you better understand the principles behind cooling load calculations. Whether you are working on a small residential project, preparing a preliminary design for a commercial space, or learning HVAC engineering, this calculator is designed to make the process easier.

If you find this workbook useful, please consider sharing it with your colleagues, classmates, or fellow engineers. Your support encourages us to continue developing more free engineering tools and practical resources for the HVAC and MEP community.

Download the BuildMEP Heat Load Calculator below and start your cooling load calculation today.

Looking for more engineering resources? Explore our MEP Tools & Calculators for additional free engineering utilities.

---

Have a suggestion?

We’re always looking to improve our engineering tools. If you find an issue, have an idea for a new feature, or would like to suggest another free Excel calculator, feel free to leave a comment. Your feedback helps us make BuildMEP more useful for engineers around the world.
