Fire alarm systems are not just made up of detectors, control panels and cables. The cable network needs to be properly designed, properly installed, and protected from damage and tested before any cable is pulled. Installing the cable is delayed by a conduit that is broken or crushed in a concrete slab, an inaccessible junction box, or a wall chase that is blocked. This slows down the cable installation, necessitates rework and can jeopardize the approved fire alarm arrangement.
This fire alarm conduit installation method statement is designed to be used as a practical method statement for conducting fire alarm conduit installation in a concrete slab and masonry wall. Pre-installation planning, shop drawing coordination, material handling, installation, cleaning, inspections, testing, health and safety, QA/QC records and handover.
The downloadable PDF can serve as a general starting point for the MEP engineer, site engineer, QA/QC, supervisors and safety officers. It should, however, be modified for the project, type of conduit, type of fire alarm system and authority requirements, and approved inspection and test plan.
Note: A generic method statement is not a substitute for the approved shop drawings, project specification, fire strategy, fire alarm designer’s requirements, manufacturer instructions or local authority approval. If there are conflicts in requirements, have a formal technical clarification before moving forward.
Download the Fire Alarm Conduit Method Statement PDF.
Download the Fire Alarm Conduit Installation Method Statement PDF.
The PDF provides a concise site reference covering:
- Conduit laying inside slabs
- Conduit laying inside walls
- Cleaning and draw-wire checks
- Material handling and storage
- Shop-drawing coordination
- Basic health and safety precautions
- Inspection before concrete or plastering

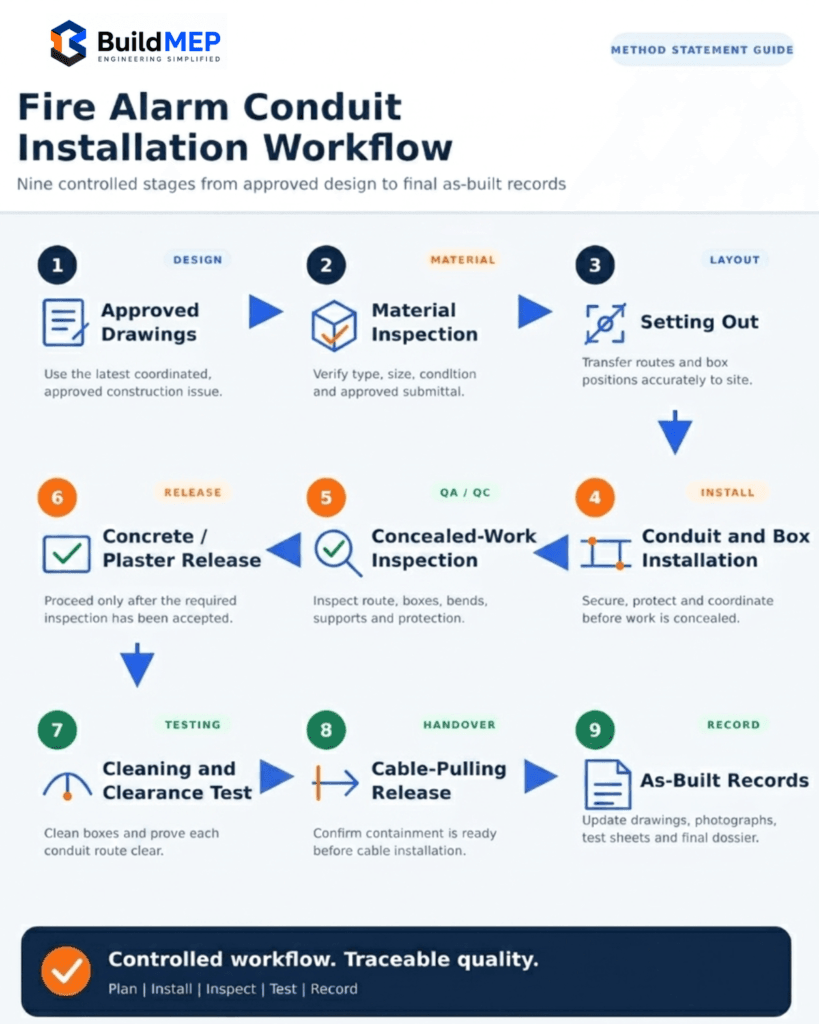

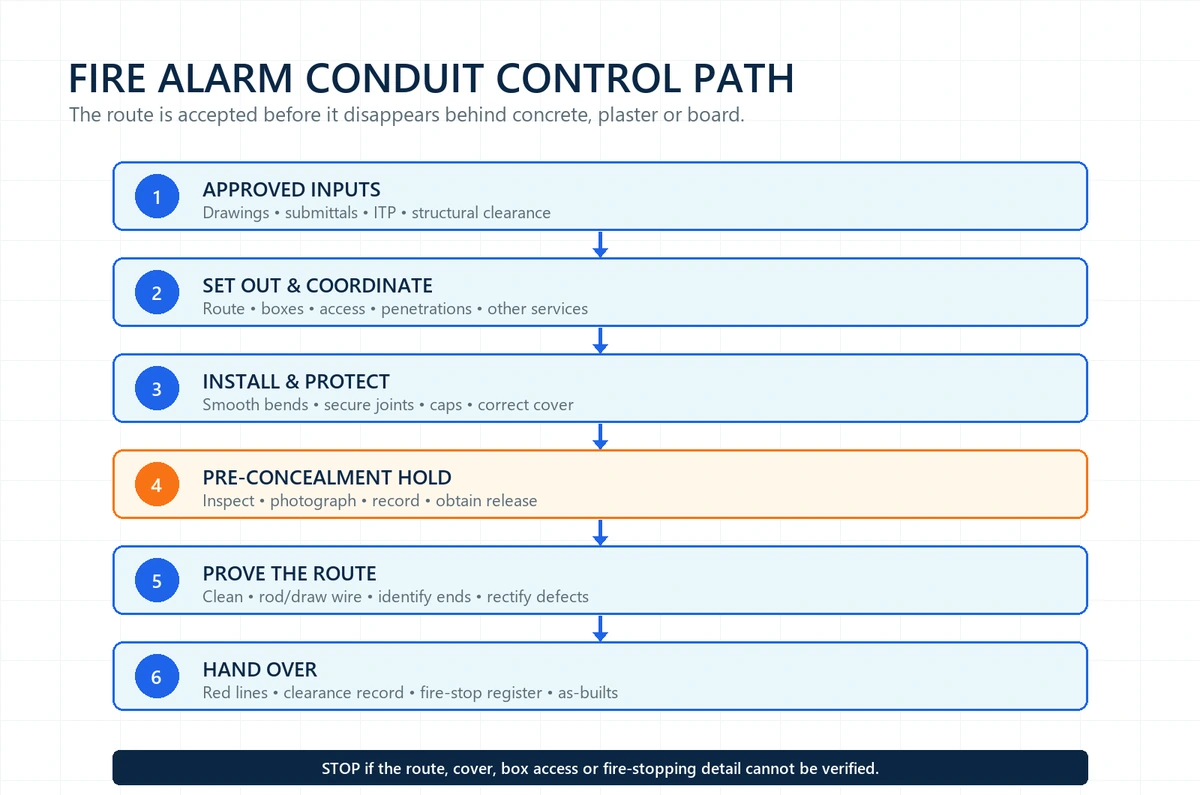

Use the detailed guide below to expand the template into a project-specific submission.
What Is a Fire Alarm Conduit Installation Method Statement?
A method statement explains how an activity will be planned, controlled, inspected and safely completed. For a fire detection and alarm system, it should define how the containment route will be transferred from approved drawings to the site and how the finished conduit installation will be accepted before it becomes concealed.
It should answer five practical questions:
- What approved information and materials are required before work starts?
- Who is responsible for setting out, installation, inspection and approval?
- How will conduits, boxes, fittings and penetrations be installed?
- How will the team demonstrate that every route is secure, clear and usable?
- What records will be retained for QA/QC and handover?
The method statement covers containment work. It does not by itself cover cable selection, cable pulling, device installation, cause-and-effect programming, loop testing, sound-level testing, commissioning or final acceptance of the complete fire alarm system.
Scope of Work
The scope may include:
- Receiving, inspecting and storing approved conduit materials
- Reviewing coordinated shop drawings and builders-work requirements
- Setting out conduit routes and box positions
- Installing conduits and boxes in reinforced-concrete slabs
- Installing concealed conduits and sunk boxes in walls
- Installing surface conduit where shown on approved drawings
- Protecting open ends and installed work
- Cleaning, rodding and proving conduit routes
- Checking the continuity and bonding of metallic containment where applicable
- Inspecting work before concrete pouring, wall closure or plastering
- Recording inspections, tests, red-line changes and as-built information
Clearly state any exclusions. Civil openings, structural modifications, fire-stopping, cable installation and system commissioning may be performed by different approved contractors, but the interfaces still need to be coordinated.
Applicable Standards and Project Documents
The contract documents determine the exact compliance basis. For UK-oriented non-domestic projects, the current reference framework may include:
- BS 5839-1:2025 — design, installation, commissioning and maintenance of fire detection and fire alarm systems in non-domestic premises. BSI lists the 2025 edition as current and confirms that it supersedes BS 5839-1:2017.
- BS EN 61386-1:2008+A1:2019 — general requirements for metallic, non-metallic and composite conduit systems.
- BS EN IEC 61386-21:2021+A11:2021 — particular requirements for rigid conduit systems.
- BS 7671:2018+A3:2024 — requirements for electrical installations, where applicable to the design, erection and verification of the installation.
Also review:
- Contract specification and approved material submittals
- Approved fire alarm design, layouts, and schematics
- Architectural, structural and reflected ceiling drawings
- Coordinated MEP shop drawings
- Builders-work and penetration drawings
- Fire-stopping details and fire strategy
- Manufacturer installation instructions
- Approved method statement, risk assessment and ITP
- Local building regulations and fire/civil-defence authority requirements
Do not write only “as per British Standards” in a final project submission. List the applicable editions and confirm them against the contract. A British Standard is a reference document, not automatic evidence of statutory or authority compliance in every jurisdiction.
Responsibilities
| Role | Typical responsibility |
|---|---|
| Project manager | Overall resources, program, interfaces, and approved-work implementation |
| Project engineer | Method statement, material approvals, coordinated drawings, technical queries, and manpower planning |
| Site engineer | Setting out, daily execution, coordination with civil and other MEP trades, and red-line updates |
| QA/QC engineer | Material inspection, work inspections, ITP implementation, test records, and nonconformance follow-up |
| Fire alarm specialist | Confirms system routing, cable requirements, interfaces, accessibility, and manufacturer requirements |
| HSE officer | Reviews risk controls, permits, access, equipment, dust controls, and toolbox talks |
| Supervisor/foreman | Direct supervision, workmanship, housekeeping, and protection of completed work |
| Skilled installer | Installs conduits and fittings in accordance with the approved documents and instructions |
The project should identify who can approve route changes. Site personnel should not relocate a box, alter a loop route, or omit a draw-in point without authorization and a recorded drawing update.
Materials
Use only approved materials with traceable delivery records. Depending on the project, these may include:
- Rigid metallic conduit, rigid non-metallic conduit, or another specified conduit system
- Compatible couplers, adapters, bushes, locknuts, and glands
- Junction, draw-in, inspection, and device boxes
- Approved saddles, clips, brackets, and channel supports
- Binding wire or approved fixing accessories for reinforcement coordination
- Draw a wire or draw a cord with adequate pull strength
- End caps, plugs, and temporary sealing materials
- Approved labels and route markers
- Earthing and bonding accessories for metallic containment
- Fire-stopping products for rated penetrations, installed by an approved system or contractor
Conduit type, classification, diameter, and fittings must match the approved material submittal. Do not mix incompatible systems or use unapproved fittings simply because they physically connect.
Tools and Equipment
Typical tools include:
- Measuring tape, laser or chalk line, and spirit level
- Conduit cutter, hacksaw, and deburring/reaming tool
- Approved conduit bender
- Drill, wall chaser, or electric chipper
- Fish tape, draw rod or proving mandrel where specified
- Hammer, chisel and mason’s tools
- Vacuum or suitable cleaning equipment
- Torque tools where manufacturer requirements apply
- Low-resistance continuity tester for metallic conduit/bonding checks, where required
- Access equipment suitable for the task
- Barriers, warning signs and dust-control equipment
- Task-specific PPE and RPE
Inspect portable electrical tools, leads, guards and extraction systems in accordance with the site procedure before use.
Material Delivery, Inspection and Storage
- Check each delivery against the approved material submittal and purchase order.
- Verify conduit type, size, classification, manufacturer and quantity.
- Inspect for cracks, dents, corrosion, damaged threads, distortion and missing accessories.
- Record certificates or product data required by the project.
- Raise a material inspection request before installation where the ITP requires it.
- Store conduits horizontally on suitable racks and support them to prevent sagging or deformation.
- Keep fittings and boxes in labelled, covered containers.
- Protect non-metallic conduit from damaging heat, sunlight or chemicals in accordance with manufacturer instructions.
- Keep materials away from standing water, impact zones and uncontrolled access.
- Segregate rejected or unapproved materials to prevent accidental use.
Pre-Installation Requirements
Work should not start until the following are available:
- Approved fire alarm and coordinated MEP shop drawings
- Approved material submittals and samples, where required
- Approved method statement, risk assessment and ITP
- Required permits and civil/structural clearance
- Latest architectural and structural information
- Confirmed box locations, mounting levels and access requirements
- Confirmed conduit sizes and permitted fill criteria
- Coordinated routes around ducts, pipes, reinforcement, post-tension zones and openings
- Approved fire-stopping details for rated walls and floors
- Suitable access, lighting, housekeeping and protection arrangements
- Competent installers and inspected tools
Before setting out, compare the fire alarm layout with architectural room names, ceiling arrangements and door locations. A correctly installed conduit is still wrong if it terminates at an obsolete device position.
Shop-Drawing Coordination
Shop drawings should show enough information for both installation and inspection. Include:
- Conduit routes, sizes and types
- Device, junction-box and draw-in-box positions
- Mounting levels and reference dimensions
- Interfaces with fire alarm control panels, interfaces and power supplies
- Slab drops, wall rises and transitions
- Fire-rated wall and floor penetrations
- Accessible covers and maintenance zones
- Separation from other services where required
- Structural restrictions and approved sleeves/openings
- Typical fixing, box and penetration details
Coordinate before concrete or wall work. Never cut reinforcement, drill a post-tensioned slab, reduce structural cover or enlarge a structural opening without written structural approval.
Maintain a controlled, stamped drawing at the workface. Record authorized changes on red-line drawings as the work proceeds; do not wait until handover and rely on memory.

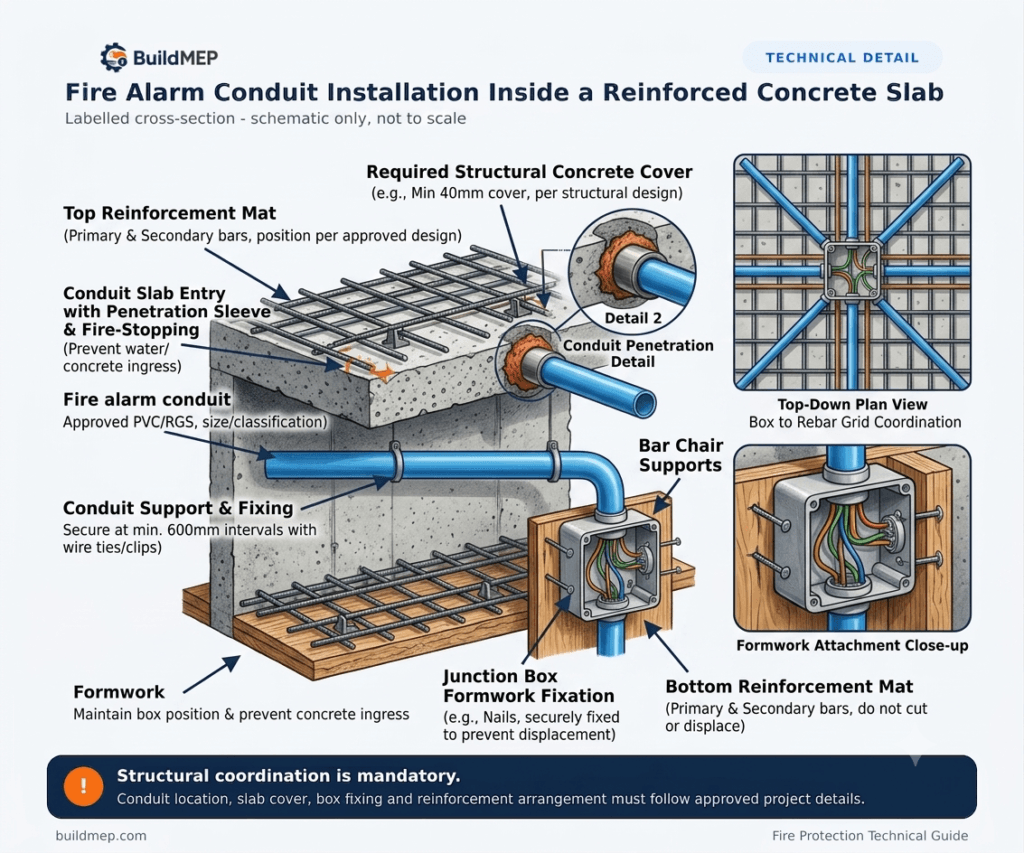

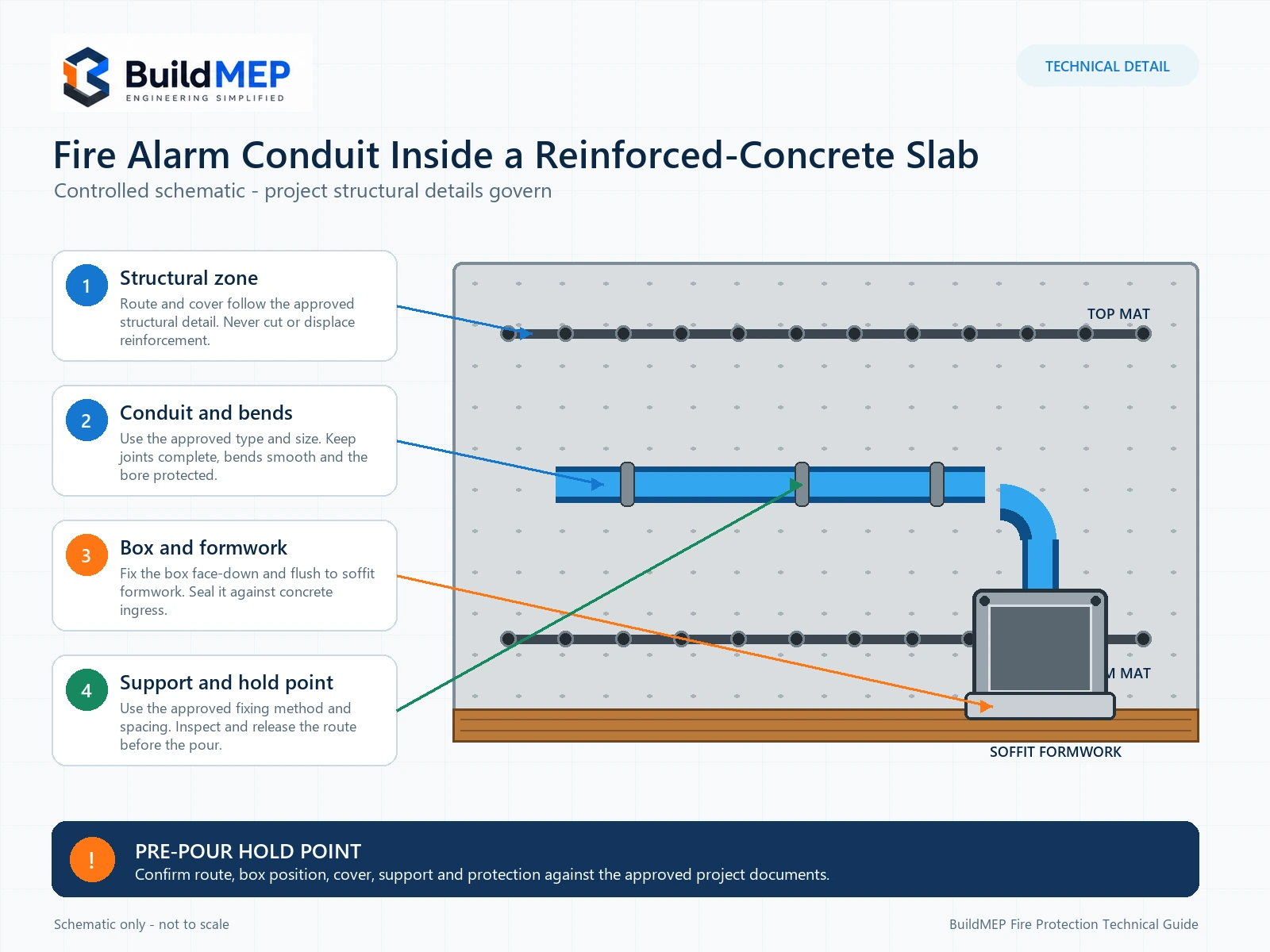

Method for Installing Fire Alarm Conduits in Concrete Slabs
1. Obtain release for the work area.
Confirm that formwork, reinforcement, and access conditions have been accepted by the responsible civil/structural team. Review the pour sequence and inspection deadlines.
2. Set out the route.
Transfer the approved route and box locations to the formwork using fixed structural or grid references. Confirm device drops and panel/interface routes before fixing.
3. Fix boxes securely.
Fix the junction, draw-in, and device boxes so they cannot move, rotate, fill with concrete or float during pouring and vibration. Seal unused entries. Position covers or faces at the correct finished level.
4. Cut and prepare conduit.
Cut the conduit square. Remove burrs and sharp edges that could damage the future cable. Use compatible fittings and form bends with the approved tool and minimum bend radius.
5. Install and secure the route.
Connect conduit sections fully and secure them to reinforcement using the approved fixing method. Supports must prevent displacement during concrete placement without damaging reinforcement, conduit, or formwork.
Maintain the required concrete cover and avoid congested reinforcement zones. Do not place conduit where it could create a weak plane, interfere with post-tensioning or obstruct concrete compaction.
6. Provide accessible draw-in points.
Locate boxes according to the approved design, route length, bend arpost-tensioning, e-pulling calculation, conduit size and project specification. All covers intended for future access must remain accessible after finishing.
Do not treat “one junction box every 8 m” as a universal rule. It appears in the downloadable source template, but spacing must be confirmed by the approved project documents and the actual route geometry. An arbitrary box can be as problematic as a missing one if it becomes concealed or violates a fire/acoustic detail.
7. Protect every opening.
Fit caps or plugs to open ends. Seal boxes against concrete ingress. Confirm that draw wires cannot become embedded or lost.
8. Inspect before the pour.
The site and QA/QC engineers should checkthe route,, size, joints, bendraw-able, boxes, supports, cover, protection, and coordination. Photograph the concealed work with identifiable grid/area references.
Submit the required work inspection request and obtain release before concreting.
9. Monitor during concrete placement.
Assign a competent person to monitor vulnerable areas during the pour. Stop and correct visible displacement, damaged boxes, or open joints while it is safe and practical to do so. Do not enter an unsafe active-pour area.
Cleaning and Proving Slab Conduits After Concrete
After formwork removal and safe access release:
- Locate all boxes and carefully remove temporary protection.
- Remove concrete residue without damaging the box or conduit.
- Check that box faces, covers, and entries are intact and aligned.
- Pass the installed draw wire, draw rod, or specified proving device through the complete route.
- Confirm that the route is free from blockage, sharp internal edges, water, and debris.
- Replace missing or damaged draw wires with a suitable new draw cord.
- Check that every end corresponds to the correct destination.
- Label route directions where this will assist cable installation.
- Record defects and repair them through an approved method.
- Update the inspection record and red-line drawing.

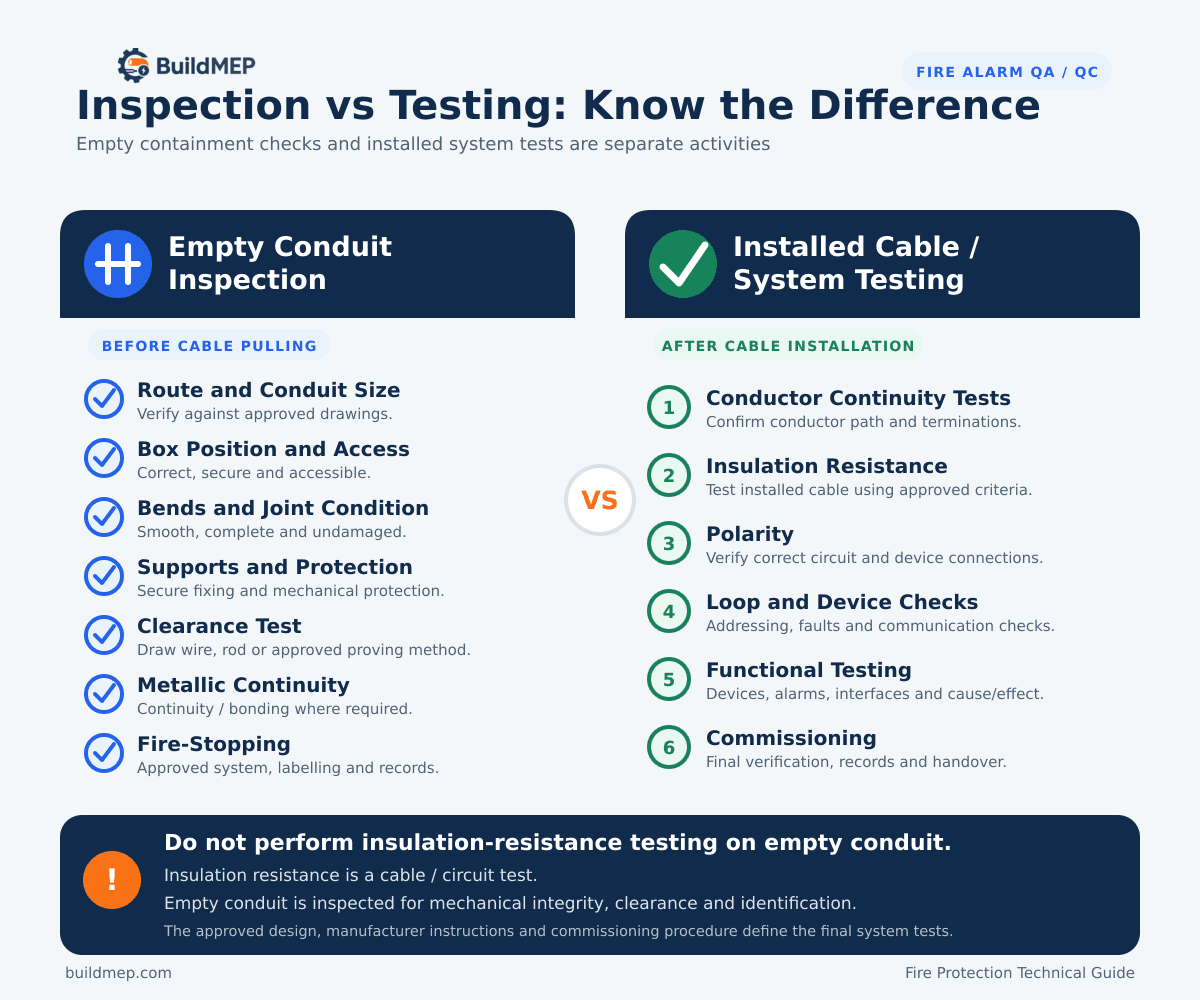

Do not use a cable insulation-resistance test to “test” an empty conduit. Insulation resistance applies to installed cables/circuits. Empty containment is inspected for mechanical integrity, alignment, clearance and—where metallic—electrical continuity or bonding as required.

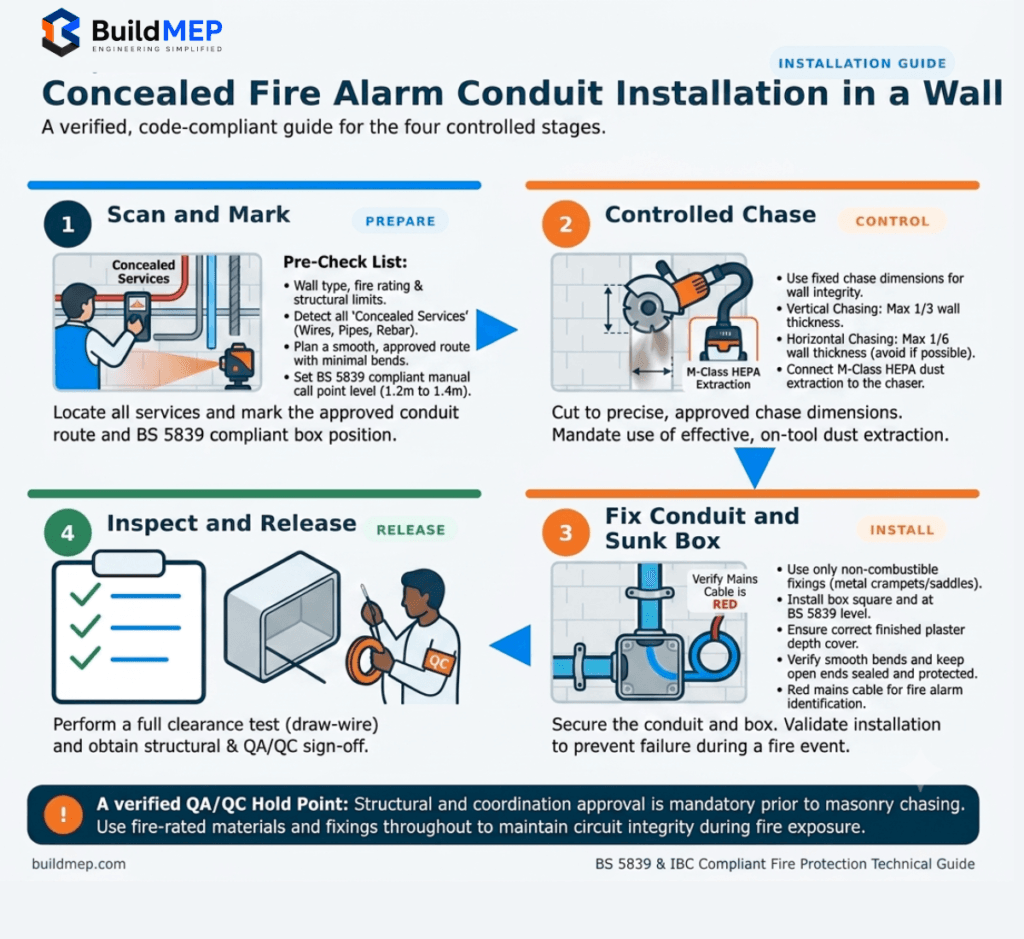

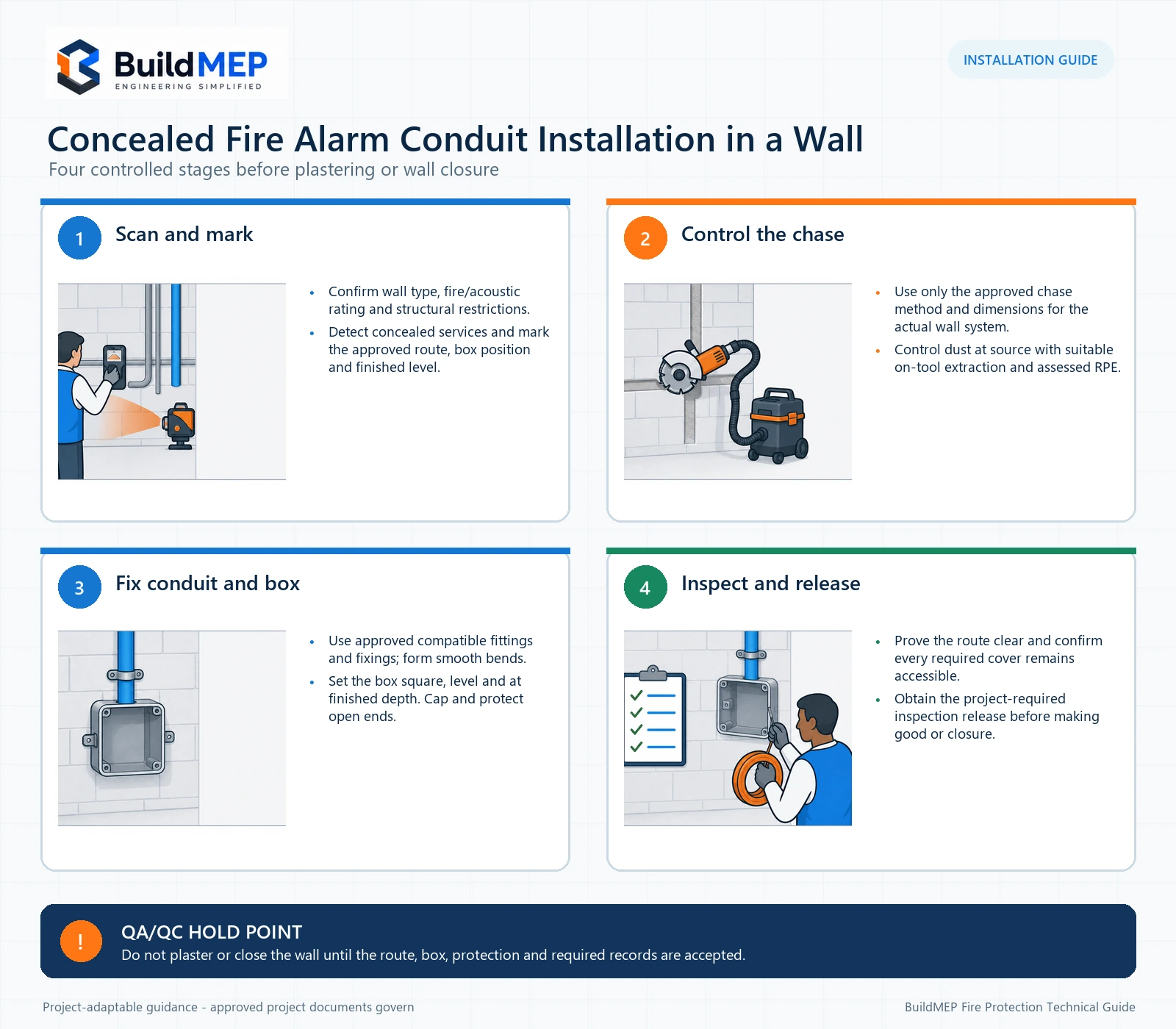

Method for Installing Concealed Conduits in Walls
1. Confirm the wall is suitable for chasing
Obtain civil or structural clearance. Identify wall type, reinforcement, concealed services, fire rating, acoustic rating, and finish. Chasing may be restricted or prohibited in some structural, precast, fire-rated, or specialist wall systems.
2. Mark routes and boxes.
Set out routes and mounting heights from approved dimensions. Verify positions against doors, ceilings, finishes, joinery, and equipment.
3. Scan and isolate
Check for concealed electrical, water, or other services. Follow the project’s permit and isolation procedure before cutting.
4. Control dust and access
Wall chasing can produce high levels of silica-containing dust. Use the controls established by the risk assessment, including suitable on-tool extraction and task-appropriate RPE. The UK HSE’s guidance on chasing concrete and raking mortar identifies this as high-risk work and recommends controlling dust at source.
5. Form the chase.
Use the approved cutting method and dimensions. Avoid uncontrolled breaking that damages the wall beyond the required chase. Do not create excessive horizontal chases, cut structural reinforcement or weaken lintels and columns.
6. Fix boxes and conduit.
Install sunk boxes square, level, and at the correct finished depth. Prepare conduit ends, form smooth bends, make secure joints, and fix the conduit so it cannot move during making good.
7. Protect and inspect
Cap open ends and protect box interiors. Check the route with a draw wire or rod. Submit the inspection before plastering or wall closure when required by the ITP.
8. Release for making good
Only release the area after defects have been corrected and the inspection accepted. Ensure the making-of material and method are compatible with the wall’s fire, acoustic, and finish requirements.
Surface-Mounted Conduit
Where approved drawings require exposed conduit:
- Set out straight, coordinated routes.
- Use approved supports at the project-specified spacing.
- Provide additional support near boxes, changes of direction, and terminations as required.
- Use corrosion-resistant materials or finishes suitable for the environment.
- Maintain accessibility and clearance for covers and equipment.
- Protect against impact, vibration, moisture, and process hazards.
- Use approved expansion arrangements where thermal or structural movement is expected.
- Bond metallic components and maintain electrical continuity where required.
- Seal rated penetrations with an approved fire-stopping system.
Routing, Bends, and Cable-Pulling Considerations
Containment must allow the specified fire alarm cable to be installed without excessive pulling force or damage. During planning:
- Confirm the conduit diameter and allowable cable fill.
- Limit bends between accessible draw-in points in accordance with the approved design and project rules.
- Use smooth bends with the correct radius; do not flatten or kink the conduit.
- Avoid inaccessible couplings and hidden junction-box covers.
- Separate or segregate fire alarm circuits from other services as required by the applicable design, electromagnetic-compatibility considerations, and project specification.
- Keep routes away from heat, water ingress, corrosive exposure, and mechanical damage.
- Coordinate expansion joints and movement joints.
- Do not use conduit fittings as substitutes for approved fire-stopping.
Fire-Rated Walls and Floors
A conduit through a fire-resisting element can reduce its performance if the penetration is not correctly sealed. Before work:
- Identify the required fire-resistance rating and wall/floor construction.
- Use an approved tested fire-stopping detail suitable for the substrate, conduit material, size, and service arrangement.
- Maintain annular-space and backing requirements.
- Do not mix unapproved products.
- Record product batch information and installer details where required.
- Photograph the penetration before and after sealing.
- Apply the required identification label.
- Include the penetration in the fire-stop register and as-built records.
Fire-stopping should be completed and inspected by competent personnel under the project’s approved system.
Conduit Inspection and Testing Procedure
Testing should distinguish between empty-conduit checks and later cable/circuit tests.
Empty-conduit checks
- Correct route, size, and conduit type
- Secure, compatible joints and fittings
- Smooth bends without flattening or kinks
- Correct and accessible boxes
- Adequate supports and protection
- Sealed open ends
- Clear bore demonstrated by draw wire, rod, or specified proving device
- No standing water, concrete slurry, or sharp obstructions
- Correct route identification
- Fire-stopping completed where applicable
- Metallic continuity and bonding verified where required
After cable installation
The fire alarm contractor should complete the cable and circuit tests required by the approved testing and commissioning procedure. These may include conductor continuity, insulation resistance, polarity, earth-fault monitoring, loop/device checks, and functional tests, depending on system type and manufacturer requirements.
Do not combine these stages into one vague statement such as “test conduits and cables.” Each test needs a defined method, acceptance criterion, instrument, record, and responsible person.
Sample Inspection and Test Plan
| Stage | Inspection or test | Suggested status | Record |
| Material delivery | Type, size, condition, and approval | Review/Witness | Material inspection request |
| Before installation | Drawings, clearances, permits, and setting out | Review | Pre-start checklist |
| Slab installation | Route, boxes, joints, supports, cover and protection | Hold before pour | Work inspection request |
| Wall installation | Chase, route, boxes, fixing and protection | Hold before plaster/closure | Work inspection request |
| Post-concrete cleaning | Box condition, identification and clear bore | Witness | Conduit clearance record |
| Metallic conduit | Electrical continuity/bonding, where applicable | Witness | Test sheet |
| Penetrations | Approved fire-stop system and labelling | Hold/Witness | Fire-stop inspection/register |
| Before cable pulling | Draw wire, clear route and accessible covers | Review | Pulling release/checklist |
| Handover | Red lines, as-builts, test records and NCR closure | Review | Handover dossier |
The consultant-approved ITP determines the actual review, witness and hold points.
Acceptance Criteria
The installation may be accepted when:
- Approved materials and fittings have been used.
- Routes, sizes, device positions and box locations match approved drawings or authorized red-line changes.
- Conduits and boxes are secure and undamaged.
- Bends are smooth and the bore remains usable.
- Open ends are protected until cable installation.
- Routes are clean, dry where required and proven clear.
- Accessible boxes remain accessible.
- Metallic containment is continuous and bonded where required.
- Structural and concrete-cover requirements are satisfied.
- Rated penetrations are sealed and recorded.
- Required inspections have been accepted.
- Nonconformances are closed.
- Red-line and as-built information is complete.
Health and Safety Requirements
Prepare a task-specific risk assessment and brief it to the workforce. Typical hazards include:
- Work at height and open slab edges
- Floor openings and incomplete formwork
- Falling materials
- Concrete-placement activity
- Wall chasing and silica dust
- Noise and vibration
- Flying particles and sharp conduit edges
- Portable electrical tools and damaged leads
- Concealed or live services
- Manual handling and long conduit lengths
- Poor access, lighting and housekeeping
- Hot work where sparks or heat are generated
Apply the hierarchy of controls. For work at height, first avoid the exposure where possible, then use collective fall prevention such as suitable guarded platforms before relying on personal fall-arrest equipment. HSE guidance on assessing work at height confirms that harnesses should not automatically be the first control selected.
Therefore, avoid a generic instruction that a harness is mandatory “above 1.5 m.” The project’s legal framework, risk assessment, access method, edge protection and rescue plan must determine the controls.
Minimum site arrangements normally include:
- Approved risk assessment and required permits
- Site induction and task toolbox talk
- Competent, authorized operatives
- Inspected access equipment and tools
- Barriers and controlled exclusion zones
- Dust extraction and suitable RPE for chasing
- Eye, hearing, hand, foot and head protection as assessed
- Safe manual-handling plan
- Fire extinguisher where the approved task assessment requires one
- Good housekeeping and prompt waste removal
- Emergency and rescue arrangements appropriate to the work

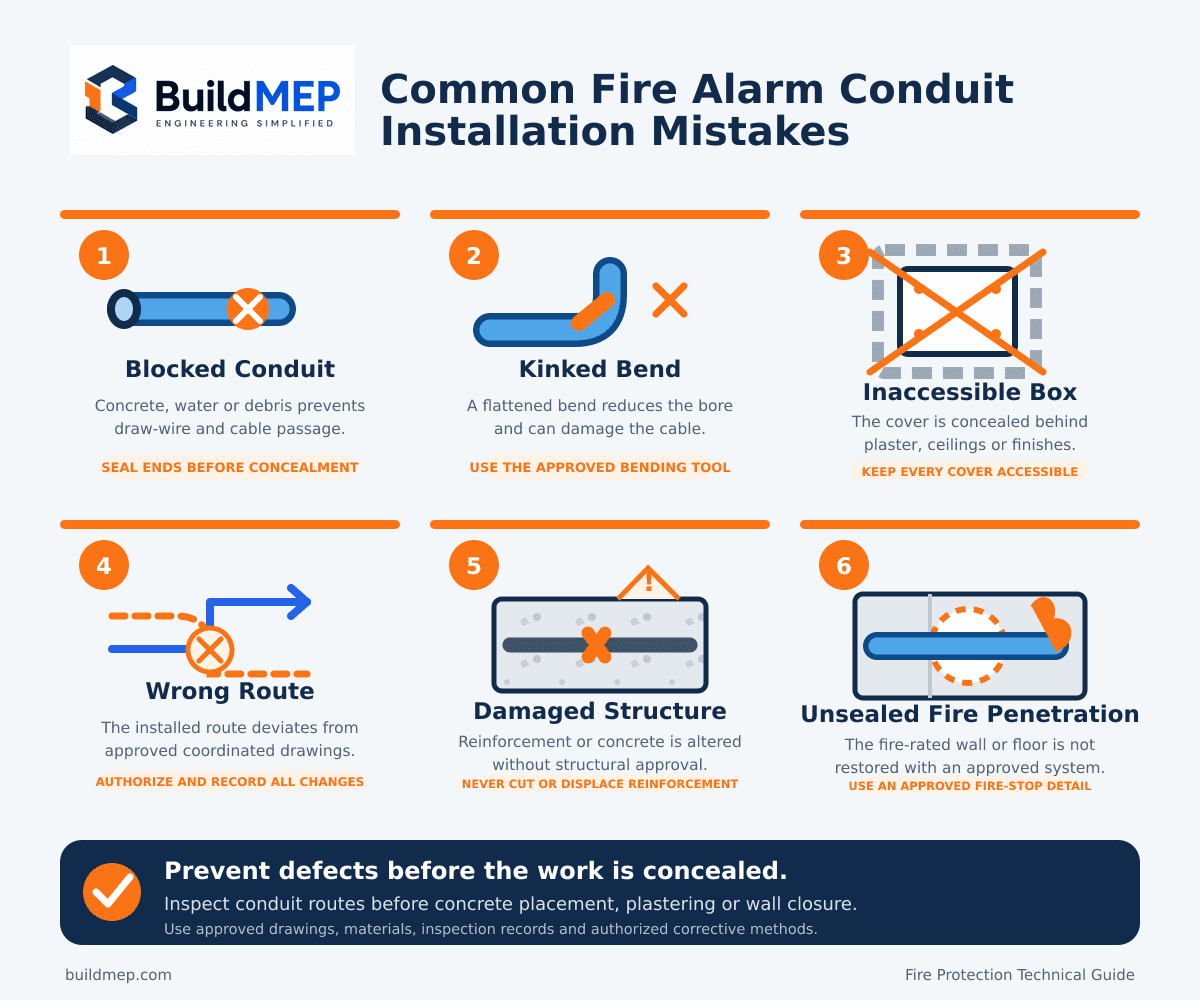

Common Installation Mistakes
Using an outdated drawing
The conduit reaches the old detector or call-point location. Prevent this with controlled workface drawings and daily coordination.
Allowing concrete into conduits or boxes
Missing caps and poorly sealed boxes create blocked routes. Seal every opening and reinspect immediately before the pour.
Excessive or poorly formed bends
Kinked conduit and too many bends make cable pulling difficult. Use approved bending tools and plan accessible draw-in points.
Concealing inaccessible junction boxes
A box is useful only if its cover remains accessible. Coordinate finishes, ceilings, joinery and equipment before installation.
Damaging structural elements
Unapproved slab drilling, reinforcement cutting or deep wall chasing can create serious structural risk. Obtain structural clearance and use approved openings.
Treating conduit checks as fire alarm commissioning
A clear conduit does not prove that the completed fire alarm system works. Cable tests, device checks, programming, cause-and-effect verification and commissioning remain separate activities.
Poor red-line records
Concealed route changes are difficult to reconstruct later. Photograph and mark changes while the work is visible.
Uncontrolled penetrations
Mortar or generic sealant is not automatically an acceptable fire stop. Use the approved tested system and record it.
Pre-Pour Checklist
- Latest approved shop drawing available
- Approved conduit type and size used
- Route coordinated with structure and other services
- Boxes positioned, aligned and securely fixed
- Conduit joints complete and compatible
- Bends smooth and undamaged
- Conduits securely fixed against movement
- Required concrete cover maintained
- Open ends and boxes sealed
- Draw wires installed where required
- No unapproved reinforcement cutting or structural changes
- Inspection photographs taken
- Work inspection accepted before pour
Pre-Plaster or Wall-Closure Checklist
- Wall type and chase approved
- Concealed services checked
- Route and mounting height correct
- Boxes square, level and at finished depth
- Conduit secured and protected
- Route proven clear
- Open ends capped
- Fire/acoustic requirements maintained
- Inspection completed before concealment
- Red-line drawing updated
Handover Documents
The final dossier may include:
- Approved method statement and risk assessment
- Approved material submittals and delivery inspections
- Coordinated shop drawings
- Work inspection requests
- Conduit clearance and metallic-continuity records
- Fire-stopping records
- Calibration certificates for test instruments
- Nonconformance and corrective-action records
- Inspection photographs
- Red-line drawings and approved as-built drawings
- Cable and fire alarm testing/commissioning records under the relevant procedures
Frequently Asked Questions
What is the purpose of a conduit in a fire alarm system?
Conduit provides a defined route and mechanical protection for fire alarm cables. The required material and arrangement depend on the design, environment, fire strategy and project specification.
Can PVC conduit be used for fire alarm cables?
Only when the applicable regulations, approved design, fire strategy, project specification and authority requirements permit it. Do not select conduit solely on cost or normal electrical practice.
How should a conduit inside a slab be tested?
Inspect its route, boxes, joints, supports and condition, then prove that the bore is clear using the approved draw wire, rod or proving method. Metallic systems may also require continuity and bonding verification.
Is a junction box required every 8 metres?
Not as a universal rule. Box spacing should follow the approved design and specification and account for route length, bends, pulling difficulty and future accessibility.
How many bends are allowed between draw-in boxes?
Use the limit stated in the applicable design rules, conduit-system instructions and project specification. Plan the route so cables can be pulled without damage, and keep draw-in covers accessible.
When should slab conduits be inspected?
After installation and coordination but before concrete placement. A second inspection should follow formwork removal and cleaning.
When should wall conduits be inspected?
Inspect after the boxes and conduits are fixed and proved clear, but before plastering, boarding or wall closure conceals the work.
Is an insulation-resistance test required for an empty conduit?
No. Insulation resistance is a cable/circuit test. Empty conduit is checked for mechanical condition and clearance; metallic containment may require an electrical-continuity or bonding test.
Who approves route changes on site?
The person or organization identified by the project’s design and document-control procedure. Changes should be technically reviewed, authorized and transferred to red-line and as-built drawings.
Does this method statement cover complete fire alarm commissioning?
No. It covers conduit installation and associated inspection. Cable testing, device addressing, cause-and-effect verification, alarm audibility/visual checks, interface testing and final commissioning require separate approved procedures.
Final Note
Reliable fire alarm installation starts before first cable is pulled. The controlled and coordinated routes, approved materials, secure boxes, clean conduits and controlled penetrations and traceable inspections ensure less re-work and a reliable structure for the following wiring and commissioning phases.
Download template and customize it for the specific project and submit with a project-specific risk assessment and ITP:
Download the Fire Alarm Conduit Installation Method Statement PDF
For document-control support, also see BuildMEP’s Submittal Checklist & Compliance Matrix resources.
