Introduction: Why Does Voltage Vary Across Countries(120V vs 230V)?
If you’ve traveled internationally or dealt with global electrical equipment, you’ve likely noticed the difference: some outlets supply 120V, while others provide 230V. This isn’t just about plug shapes—it impacts safety, energy efficiency, appliance performance, and even installation costs.
In this guide, we’ll compare 120V vs 230V, explain where each is used, and break down their practical implications for homeowners, engineers, travelers, and students.
Where in the World Uses 120V and 230V?
| Region | Standard Voltage | Frequency | Example Countries |
|---|---|---|---|
| North America | 120V | 60 Hz | USA, Canada, parts of Latin America |
| Most of the World | 230V | 50 Hz | UK, EU, Australia, Asia, Africa |
| Japan (Special Case) | 100V | 50/60 Hz | Eastern Japan (50Hz), Western Japan (60Hz) |
Why the split?
120V stems from early U.S. electric systems by Thomas Edison
230V evolved in Europe for more efficient power delivery
Changing an entire nation’s voltage is costly, so most countries are stuck with what they started
Safety: Which Voltage Is Safer?
| Feature | 120V | 230V |
|---|---|---|
| Shock Risk | ⚠️ Lower (but still dangerous) | ⚠️ Higher – can cause severe injury |
| Arc Fault Risk | ✅ Lower | ❌ Higher |
| Fire Hazard | ⚠️ Higher current = overheated wires | ⚠️ Higher voltage = sustained arcs |
120V systems are considered slightly safer, especially for human contact and arc fault protection.
230V systems, while efficient, pose more serious shock and fire risks without proper protection (like RCDs).
💡 Safety Tip: Use GFCI (120V) or RCD (230V) outlets in wet areas for added protection.

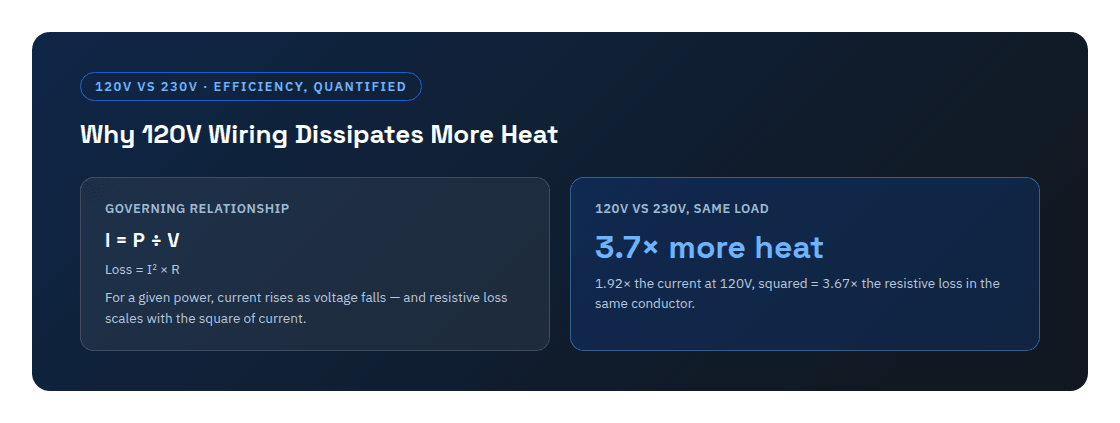

Efficiency: Why 230V Delivers More for Less
| Factor | 120V | 230V |
|---|---|---|
| Current Required | Higher (for the same power) | Lower |
| Wiring | Thicker wires needed | Thinner wires sufficient |
| Energy Loss | More heat loss (I²R) | More efficient |
| Appliance Output | Often limited to 1500–1800W | Can handle 2500–3000W easily |
230V is more efficient for delivering higher power with lower current.
That’s why kettles, dryers, and heaters are often more powerful in 230V regions.
Appliance Compatibility: What to Know Before You Plug In
Don’t plug a 120V appliance into a 230V socket—you’ll likely fry it!
✅ Devices that work worldwide:
Dual-voltage electronics (check for “100–240V” label on power adapter)
Many phone/laptop chargers
❌ Devices that don’t:
120V-only hair dryers, blenders, coffee makers
230V-only heating tools or industrial equipment
🧳 Traveling Between Voltages?
You’ll need:
A plug adapter (changes pin shape, not voltage)
A voltage converter (if your device is not dual-voltage)
Are you looking travel adaptor to purchase? Consider these,
Installation Impact for Homeowners and Engineers
120V Homes (USA/Canada):
Use split-phase 240V for big appliances
Standard outlets: 120V, 15–20A circuits
Need thicker wires for high power loads
230V Homes (Europe/Asia):
One-phase 230V to each outlet
Circuits often support 10–16A at 230V (~2.3–3.6kW)
Smaller wire sizes for the same power delivery
Design Tip for Engineers:
When designing global products, ensure compatibility with:
120/60Hz and 230/50Hz
Regional safety standards (UL, CE, IEC)
History Behind the Voltage Split
120V: Originated from Edison’s 110V DC system in the U.S.
230V: Europe shifted to higher voltages post-WWII for efficiency
Standardization:
EU harmonized at 230V ±10% (covers old 220V and 240V)
North America stayed with 120V/240V split phase
IEC 60038 defines international voltage standards
FAQ: Quick Answers
Is 120V safer than 230V?
Yes—generally, less current flows through the body during a shock, but both can be fatal.
Can I use a 230V device in a 120V country?
Not without a step-up converter. Most devices will not work or will be underpowered.
Can I convert my whole house from 120V to 230V?
Technically yes—but it’s expensive and usually unnecessary unless you’re rewiring from scratch.
Final Verdict: Which Voltage System Is Better?
| Use Case | Better Voltage |
|---|---|
| Safety | 120V |
| Efficiency | 230V |
| Power Delivery | 230V |
| Appliance Speed | 230V |
| Shock Risk | 120V (but both are dangerous) |
Conclusion:
Neither system is “perfect”—but understanding their differences helps you use appliances safely, save energy, and plan smarter whether you’re wiring a home or traveling internationally.
